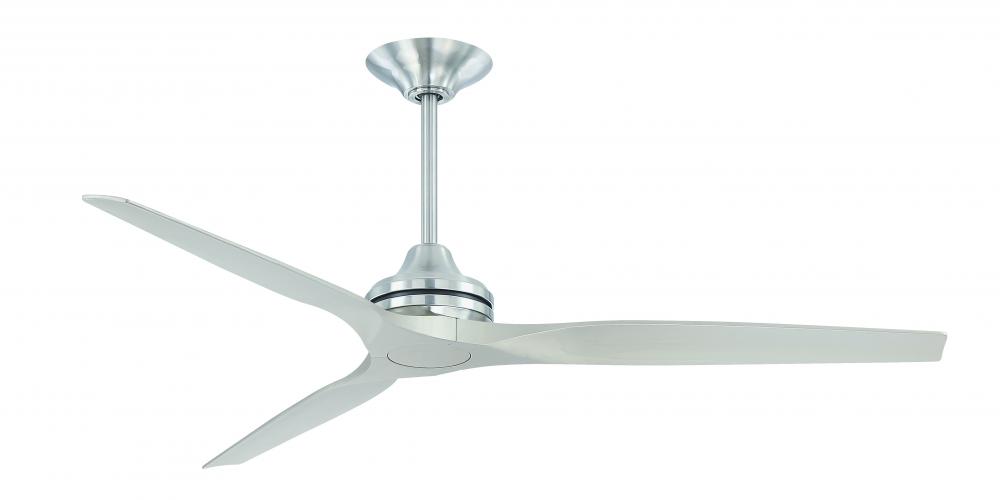

Spitfire DC Custom Indoor/Outdoor Ceiling Fan DC Motor - Brushed Nickel (MAD6721BN)
by Fanimation
The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. This ceiling fan is Damp rated for indoor or outdoor use and can be controlled using the Fanimation Wi-Fi fanSync application.
Product Specification
Item #
MAD6721BN
Dimensions
Height: 19.69"
Width: 64.00"
Length: 64.00"
Additional product details
Vendor Item #
MAD6721BN
Category
Fans
Subcategory
Ceiling Fans
Finish
Nickel
Style
Traditional
Option
Energy Efficient
, Outdoor
, Damp Rated
Voltage
100-120
Number of Blades
3 Blades
Location Rating
Damp Rated
Wattage
8w
Category
Motor
Finish
Brushed Nickel
Option
Energy Efficient
, Outdoor
Family
Spitfire
Voltage
120 V
Air Flow CFM
12900
Air Flow Efficiency
386
Blade Pitch
14
Canopy
8.76 Dia x 2.52 H
Harmonized Codes
8414.51.3000
Light Kit Included
No
Motor Size
153 x 25
Motor Type
DC
Ship Carton Height
10.94
Ship Carton Length
14.37
Ship Carton Width
10.43
Ship Weight
16.65
Sold By
EA
Warranty
1 Year
Weight
15.99
Airflow Efficiency Low
1049
Airflow Efficiency Medium
880
Avg Airflow Efficiency
376
Avg CFM Energy
7429
Avg Energy Use
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Cap Included
No
Carton Cubic Feet
0.95
Case Height
10.94
Case Length
14.37
Case Quantity
1
Case Weight Pounds
18.19
Case Width
10.43
CEC Uploaded
Yes
Ceiling To Blade Edge
19.69
Ceiling To Bottom (No Light Kit)
19.69
Ceiling To Bottom (With Light Kit)
21.35
CFM Low
2958
CFM Medium
7355
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.06
Current Draw Medium
0.14
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
12, 6
Energy Efficient
Yes
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
8.07
Included Control
TR305
Included Control Type
Handheld
Indoor
Yes
Leadwire
80
Location Rating
Damp Rated
Max Ceiling Slope
27
Max Length
96
Max Width
96
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Outdoor
Yes
Prop 65 Description
This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
112
RPM Low
29
RPM Medium
67
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts High
33
Watts Low
3
Watts Medium
8
Manufactured By
Fanimation
Other Details:
- CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds
- FINISH: Brushed Nickel ceiling fan motor from the Spitfire DC collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
- Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
- INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod.
- LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
- LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
- Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
- POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 12,900 CFM
- SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
- TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
- WARRANTY: Limited lifetime
