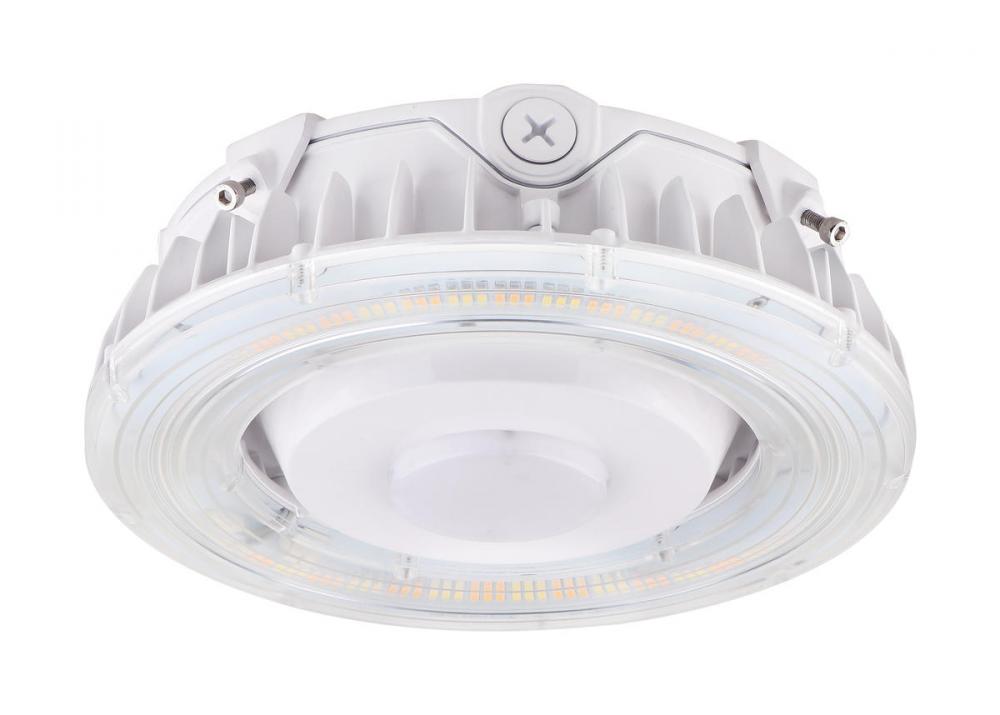

LED Canopy Fixture; 40 Watt; CCT Selectable; White Finish; 100-277 Volt (65/625)
by Nuvo
LED Canopy Fixture; 40 Watt; CCT Selectable; White Finish; 100-277 Volt
Product Specification
Item #
65/625
Dimensions
Height: 3.13"
Width: 10.03"
Additional product details
Vendor Item #
65/625
Category
Specialty Items
Subcategory
Canopies
Finish
White
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Surface Mount
Sub Category
Canopy Fixture
Style
Utility
Additional Info
UV stabilized powder coated finish
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
10.03
Dimmable
Yes-Dimmable
Each Height
5.51
Each Length
11.81
Each Width
11.81
Lumens
4425L-5293L
Tariff Code
9405.11.6020
Warranty
5-Years
Wire Length
11.81
Amps
0.400-0.144A
ANSI Base
Integrated
Beam Angle
150
B_U_G_Rating
B2-U3-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC Terse
Lawful for sale in California
Connection
Hardwire
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Parking Garage Luminaires
Each Cube
0.4447
Each Quantity
1
Efficacy
110.63/121.48/132.33 LPW
FCC Compliant
Yes
Feature 1
Adjustable color temperature: 3000K, 4000K, 5000K
Feature 2
Adjustable lumen range: 4425~5293
Feature 3
DLC Premium certified
Feature 4
1-10V dimming
Feature 5
IP65 Rated
Feature 6
150 degree beam spread
Feature 7
White Finish
Finish Family
White
Has Camera
No
Has Emergency Battery
No
IC Rated
Yes
Impact Rating (IK)
IK10
Incandescent Equivalent
120W
Indoor Outdoor
Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's 65-625 40-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture
Material
Aluminum Alloy
Mounting Procedure
Ceiling
Operating Frequency
50-60Hz
Operating Temp
-30C (-22F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's 40-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
40W LED CANOPY LIGHT
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
4.41
Wire Quantity
5
Wire Temp Rating
105C (221F)
Manufactured By
Nuvo
Finish
